Jaguar Throttle Switches

THROTTLE POSITION SENSOR (TPS POTENTIOMETER), FITS 1995-1997 XJ6 XJR & 1995-1996 4.0 XJS FROM VIN 194775 ON. LOCATED UNDER THROTTLE BODY. JLM12015. (JLM12074)

MICROSWITCH, FITS 1982-1991 V12 XJS AND 1980-1987 XJ6 KICKDOWN SWITCH AND WIDE OPEN THROTTLE SWITCH mounted on the throttle pedestal or on the throttle cable). (XJS neutral safety switch mounted on gearshift). (XJS 1993-1996 reverse light switch located on rear of gear shift) (C33509)

NLA THROTTLE POSITION SENSOR (POTENTIOMETER) Red housing, 3 wires. FITS 1992-1993 XJS FROM 179737 ON 5.3 LITER ENGINES ONLY. Lucas number 73384 (DAC7427)

USED KICKDOWN SWITCH FITS 1994-1996 4.0 XJS (DBC12243)

NLA THROTTLE POSITION SENSOR (POTENTIOMETER). FITS 1993-1994 XJ6 XJ12, 1993-1994 4.0 XJS TO VIN 194775, AND ALL 6.0 XJS Red Base, Small Black Square Plug, 6 Terminals. Lucas 73383 (DBC2626)

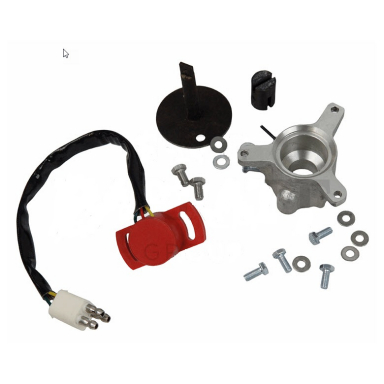

UPGRADE KIT, THROTTLE POSITION SENSOR, POTENTIOMETER (KIT INCLUDES POTENTIOMETER, ADAPTOR, DRIVE COUPLING & HARDWARE). SEE #10 & #22 IN SECOND ILLUSTRATION. FITS V12 XJS FROM 1980-1989 UP TO VIN 157117 LUCAS IGNITION SYSTEMS Replaces 73200. (EAC2670)

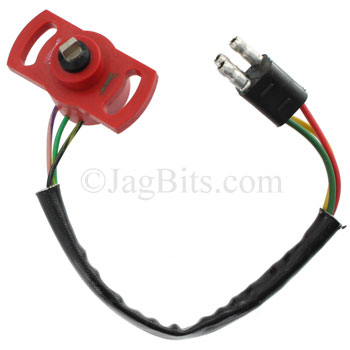

THROTTLE POSITION SENSOR (POTENTIOMETER), FITS V12 XJS 1989-1991 FROM VIN 157118 TO VIN 179736. MARELLI IGNITION SYSTEMS (EAC9634)

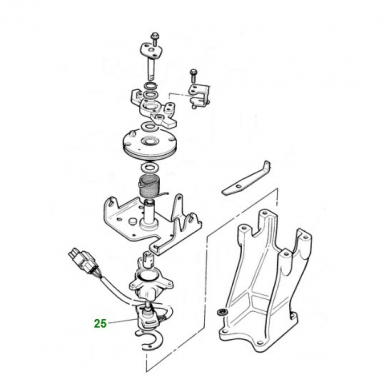

USED THROTTLE POSITION SENSOR POTENTIOMETER. SEE #25 IN ILLUSTRATION. Red housing 3 wire with a green plug. FITS 1992-1993 XJS FROM 179737 ON 5.3 LITER ENGINES ONLY. Lucas 73384 (DAC7427)

ROLL PIN FOR EBC3568 COUPLING FITS 1988-1991 XJS 5.3 (PA103161J)

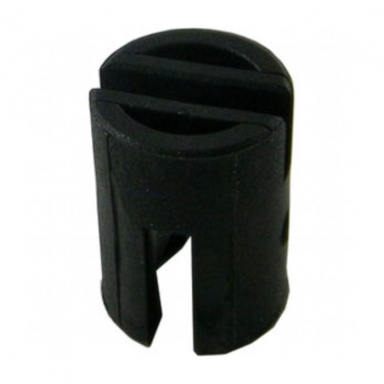

COUPLING FOR THROTTLE POTENTIOMETER FITS 1988-1991 XJS 5.3 (EBC3568)

USED SHAFT FOR THROTTLE SWITCH FITS 1988-1991 XJS 5.3. NLA (EBC3566)

USED THROTTLE SWITCH POTENTIOMETER FITS 1976-1979 XJS AND 1975-1979 XJ12. Lucas 30625. NLA (C43031)
